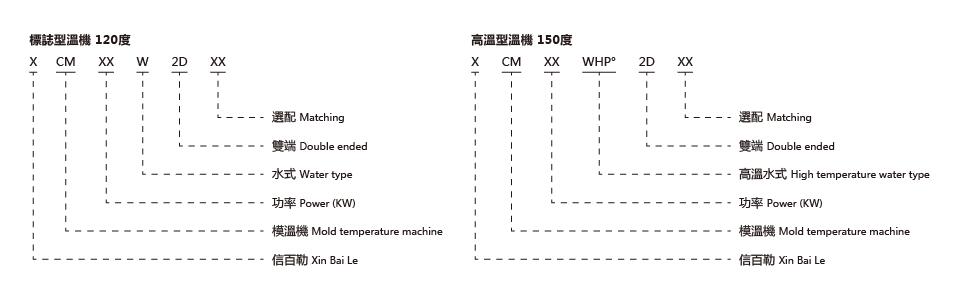

機型 Machine type |
|
XCM-6-W |
XCM-6-W (2D) |
XCM-9-W |
XCM-9-W (2D) |
XCM-12-W |
XCM-12-W (2D) |
XCM-18-W | XCM-24-W | |
| 温控範图(℃) | Temperature range | +15-100 | +15-100 | +15-100 | +15-100 | |||||
| 温控精度 | Temp accuracy | ±1 | ±1 | ±1 | ±1 | |||||
| 電源(V/FH/HZ) | Source | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |||||
| 传熱媒体 | Heat transfer media | 水Water | 水Wate | 水Water | 水Water | |||||
| 冷卻方式 | Cooling mode | 直接冷卻Direct cooling | 直接冷卻Direct cooling | 直接冷卻Direct cooling | 直接冷卻Direct cooling | |||||
| 加熱功率(kw) | Heating power | 6 | 6+6 |
|
9+9 | 12 | 12+12 | 9+9 | 12+12 | |
| 泵浦馬力(kw) | Pump power | 0.37 | 0.37+0.37 | 0.75 | 0.75+0.75 | 1.5 | 1.5+1.5 | 2 | 3 | |
| 泵浦工作流量(L/min) | Pump working flow | 42 | 56 | 112 | 112 | 137 | 233 | |||
| 泵浦工作壓力(kgf/cm²) | Pump working pressure | 2.2 | 2.8 | 2.5 | 2.5 | 2.7 | 3 | |||
| 冷卻水配管(inch) | Cooling water piping | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |||
| 循環水配管(inch) | Circulating water piping | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 1 | |||
| 外形尺寸 | H(mm) | Extemal size | 870 | 980 | 870 | 980 | 1030 | 1150 | 1100 | 1100 |
|
W(mm) |
310 | 350 | 310 | 350 | 350 | 350 | 470 | 470 | ||
| D(mm) | 740 | 950 | 740 | 950 | 720 | 1100 | 1080 | 1080 | ||
高溫型溫機150°
| 機型 Machine type | XCM-9-WHP | XCM-9-WHP-2D | XCM-12-WHP | XCM-12-WHP-2D | XCM-18-WHP | XCM-24-WHP | |
| 溫控範圍(℃) | Temperature range | +15-150 | +15-150 | +15-150 | +15-150 | +15-150 | +15-150 |
| 温控精度 | Temg accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| 電源(V/FH/HZ) | Source | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| 传熱媒体 | Heat transfer media | 水Water | 水 Water | 水Water | |||
| 冷卻方式 | Cooling mode | 直接冷卻Direct cooling | 直接冷卻Direct cooling | 直接冷卻 Direct cooling | |||
| 加熱功率(kw) | Heating power | 9 | 9+9 | 12 | 12+12 | 9+9 | 12+12 |
| 泵浦馬力(kw) | Pump power | 0.75 | 0.75+0.75 | 1.5 | 1.5+1.5 | 2.2 | 3 |
| 泵浦工作流量(L/min) | Pump working flow | 60 | 60 | 90 | 90 | 90 | 188 |
| 泵浦工作壓力(kgf/cm²) | Pump working pressure | 4 | 4 | 3.5 | 3.5 | 3.5 | 3.6 |
| 冷部水配管(inch) | Cooling water piping | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| 循環水配管(inch) | Circulating water piping | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| 外形尺寸(mm)HxWxD | Extemal size | 870×310×740 | 980×350×950 | 1030×350×720 | 1150×350×1100 | 1100×470×1080 | 1100×470×1080 |
高溫型溫機180度
| 型号 |
|
XCM-9-WHP 180℃ |
XCM-9-WHP-2D 180℃ |
XCM-12-WHP 180℃ |
XCM-12-WHP-2D 180℃ |
XCM-18-WHP 180℃ |
XCM-24-WHP 180℃ |
| 温控能图(℃ | Temperature range | +30-180 | +30-180 | +30-180 | +30-180 | +30-180 | +30-18 |
| 温控精度 | Temp accuracy | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 |
| 電源(V/FH/HZ) | Source | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| 传熱媒体 | Heat transfer media | 水 Water | 水 Water | 水 Water | |||
| 冷卻方式 | Cooling mode | 间接冷卻Indirect cooling | 间接冷卻 Indirect cooling | 间接冷卻 Indirect cooling | |||
| 加熱功率(kw) | Heating pewer | 9 | 9+9 | 12 | 12+12 | 9+9 | 12+12 |
| 主泵浦馬力(HP) | Main pump horsepower | 0.55 | 0.55+0.55 | 1.5 | 1.5+1.5 | 2 | 3 |
| 补水泵馬力(HP) | Make-up pump horsepower | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| 泵浦工作流量(L/min) | Pump working flow | 60 | 60 | 90 | 90 | 90 | 188 |
| 泵浦工作壓力(kgf/cm²) | Pump working pressure | 4 | 4 | 3.5 | 3.5 | 3.5 | 3.6 |
| 冷卻水配管(inch) | Cooling water piping | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| 循環水配管(inch) | Circulating water piping | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| 外形尺寸(mm) HxWxD | Extemal size | 870×310×740 | 980×350×950 | 1030×350×720 | 1150×350×1100 | 1100×470×1080 | 1100×470×1080 |
