Hopper Dryer
●Adopt hot air diffuser to keep even hot air flow to improve drying efficiency.
●The whole series machine types are equipped with temperature protector to prevent the heating elements working without water due to fan failure, and to protect heating elements
●When the actual drying temperature exceeds the set value, the power supply of the heater will be cut off automatically, and the alarm light will flash
●Adopt heat-insulated fan to prolong machine life
●Maximum drying temperature reaches 160ºC
Contact Us
Hopper Dryer
Technical Parameter

PARAMETERS

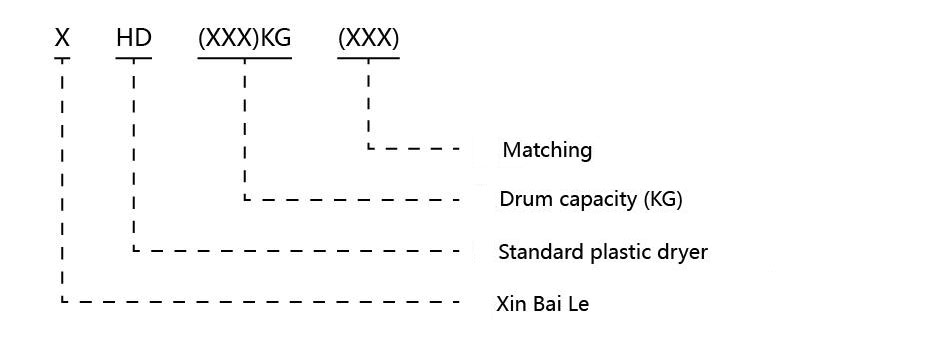

Machine type XHD- 12KG 25KG 50KG 75KG 100KG 150KG 200KG 300KG 400KG 500KG 600KG
Drying heating power(kw) 2.2/3* 3/3.3* 3.9/4.2* 4.2/4.8* 6/6.6* 6.6/7.2* 12/15* 15 18 19.5 21
Drying fan power(kw) 0.1 0.17 0.17 0.17 0.2 0.2 0.35 0.35 0.45 0.45 1.03
Loading capacity(kg) 12 25 50 75 100 150 200 300 400 500 600
H(mm) 801 989 1112 1247 1316 1636 1852 2272 1933 2383 2174
H1(mm) 676 878 924 937 1151 1151 1573 1573 1609 1609 2054
H2(mm) 321 396 452 463 536 536 634 634 713 713 821
H3(mm) 480 593 660 784 780 1101 1218 1638 1220 1670 1354
H4(mm) 165 196 204 213 255 255 287 287 287 287 344
H5(mm) 107 150 150 150 173 173 194 194 205 205 245
W(mm) 646 728 787 874 996 996 1183 1183 1339 1339 1510
D(mm) 342 413 508 555 627 627 753 753 893 893 1033
D1(mm) 108 158 158 158 177 177 230 230 280 280 280
W1(mm) 108 148 148 148 177 177 230 230 280 280 280
ΦA(mm) 327 383 478 535 602 602 745 745 897 897 1050
ΦB(mm) 42 53 53 53 81 81 110 110 116 116 130
Net weight(kg) 23 25 37 39 55 56 113 116 132 134 205
