Volumetric Doser
●Modular assembling structure, with convenient assembly/disassembly, easy to clean and replace
●Simultaneously meet the requirement of external signal input
●Record current running mode, not affected by power cut and resume running after the power is resumed
●With mandatory material clearing, convenient for changing pigments
●Applies to injection molding and extrusion molding
●Equipped with RS485 communication
Volumetric Doser

PARAMETERS
Machine type Monochrome machine Two color machine

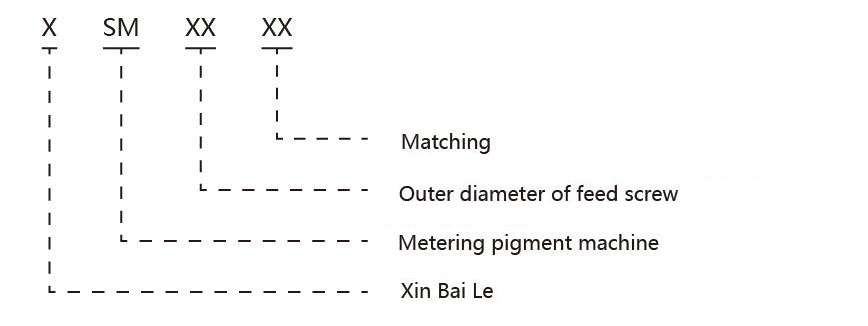

XSM-12 XSM-16 XSM-20 XSM-25 XSM-D
Motor torgue(N.m) 4N.m 4N.m 4N.m AN.M 4N.m*2
Agitator power(kw) 0.09 0.09 0.09 0.09 0.09
Screw outside diameter(mm) 12 16 20 25 **
Output(kg/hr) 0.3~10 0.5~30 3-60 6~100 *
Storage drum(L) 10 10 10 10 10
agitator Optional Optional Optional Optional Optional
tripod Optional Optional Optional Optional Optional
Extemal size H×W×D(mm) 500×520×300 500×520×300 500×520×30 500×520×300 500×900×30
Net weight(kg) 24 24 24 24 40
