Silent Claw Type Crusher
●The tool is made of imported high quality material, wear-resistant, high hardness, long service life, and can be grinded and reused
●Mill housing is made of hardened material, with features of big thickness, high strength, strong abrasion resistance, no pollution, long service life and very convenient maintenance after the CNC machine finishing
●The body adopts fully closed sound proof box and sound-absorbing cotton is placed at the machine where it may have sounds, effectively reduces the noise occurred in crushing
Silent Claw Type Crusher

PARAMETERS

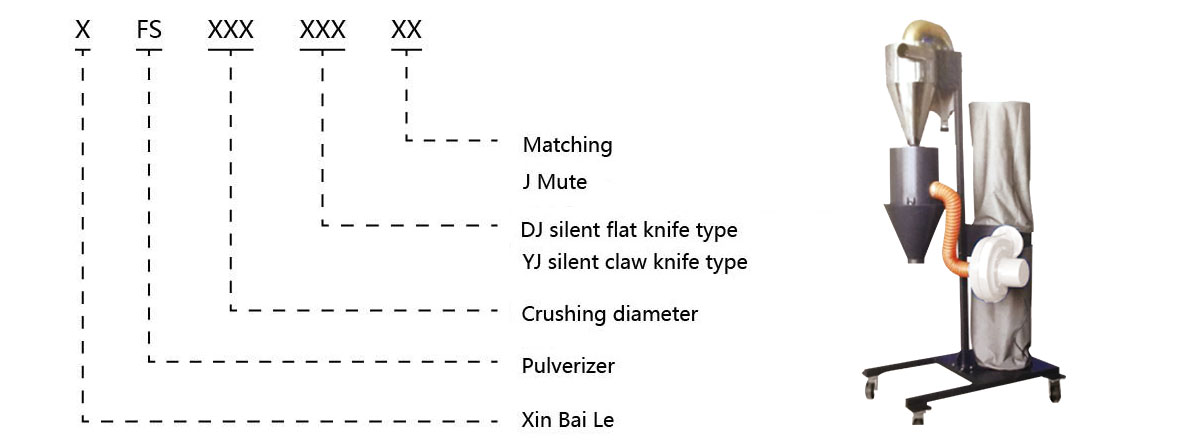

Machine type XFS-400-J XFS-600-J XFS-800-J
Diameter of crushing chamber(mm) 410×235 610x320 815x470
Crushing capacity(kg/h) 80-120 230-500 300-800
Number of stationary tools 2 4 4
Number of rotating tools 6 6 9
Power(kw) 7.5 15 22
Overall dimension(mm)HxWxD 1030×840×1390 1320×1110×1830 1730×1490×2300
Weight 550 1100 2150
Suction fan(HP) (optional) 3 3 5
Ningbo Xin Bai Le Intelligent Machinery Manufacturing Co., Ltd.
