Slow Speed Side Machine
●No sieve net design, with even crushing granules and very small amount of powder
●Rigid structure saves space with convenient and quick sweeping
●Feeding box adopts visible window, double layer soundproof design, the liner is made of stainless steel material
●Speed reducer and main axle adopt coupling for connection, convenient and fast for changing blades and speed reducer
Contact Us
Slow Speed Side Machine
Technical Parameter

PARAMETERS

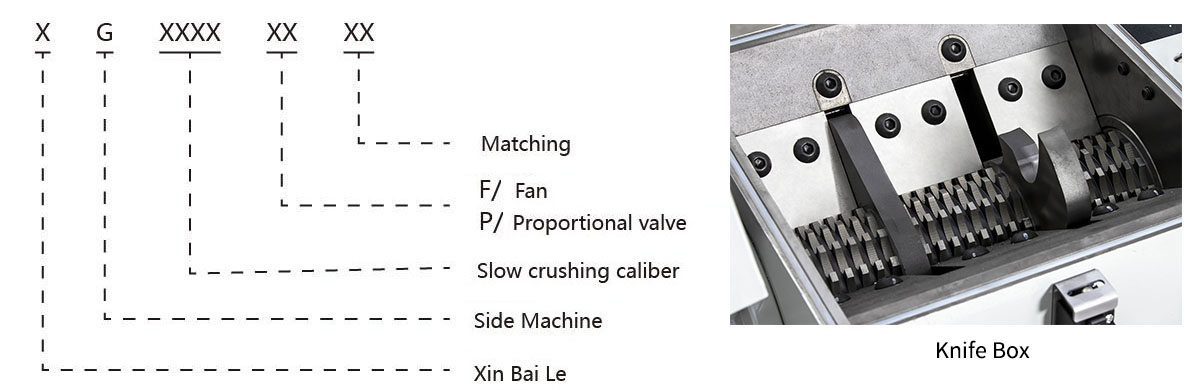

Machine type XG XG-2331 XG-3132 XG-3242
Rotational speed(rpm) 25 25 25
Number of teeth and tools 2 3 4
Number of claws 1 2 3
Number of stationary tools 4+1 6+1 8+2
Rotor diameter(mm) 270 270 270
Rotor working width(mm) 200 300 410
Mincing room inlet(mm) 310×200 310x300 310x420
Driving pewer(kw) 1·5/0.75 1.5/2.2 2·2
Weight(kg) 250 300 360
Overall dimension(mm) H×W×D 1120×480x1310 1200x480×1400 1200×480×1560
