Volume Type Mixing Tank
●Storage barrel is divided into two halves (left and right), and they are No. 1 stock bin and No. 2 stock bin respectively
●Both stock bins can be installed with vacuum hopper or direct type packing machine
●Equipped with two sets of screw metering devices, accurately meters the raw material supply quantity
●Screws adopt stainless steel material, with no pollution to raw materials
●Equipped with suction box, connect with the external suction feeder to convey mixing materials
●Add anti-spill switch, prevents mixture spill out
Contact Us
Volume Type Mixing Tank
Technical Parameter

PARAMETERS

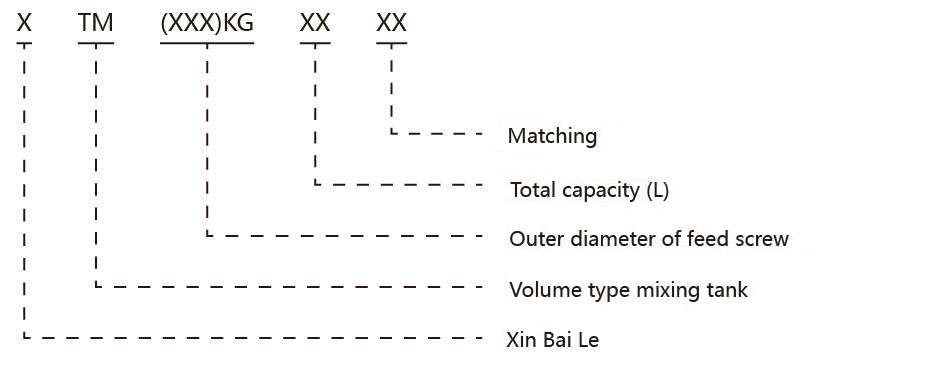

Machine type XVTM-60-20 XVTM-60-400 XVTM-60-700 XVTM-80-1200
No.1 motor powe(kw) 0.09 0.09 0.09 0.12
No.2 motor power(kw) 0.09 0.09 0.09 0.12
Screw outside diameter(mm) 60 60 60 80
Volume of Wareheuse 1(L) 100 200 350 600
Volume of Warehouse 2(L) 100 200 350 600
Processing capacity of No.1 motor(kg/h) 475.3 475.3 475.3 808.5
External trim of No.2 motor(kg/h) 25.3~434.4 25.3~434.4 25.3~434.4 43.6~695.1
Proportion range(%) 4.5~70 4.5~70 4.5-70 A5~7C
Overall dimension H×W×D(mm) 1145×600×600 1100×900×900 1540×1000×1000 1745×1230×1230
Net weight(kg) 80 100 150 190
Suction pipe diameter(inch) 1.5 1.5 1.5 2.0
