Oil Mold Temperature Controller
●Maximum service temperature 200ºC or 300ºC
●The high temperature oil heater uses magnetic driven pump, with its inside adopting stainless steel, high voltage explosion protection and not easy to leak
●Equipped with multiple safety measures like power supply reverse protection, pump overload protection, over temperature protection, low liquid level protection etc. When there is trouble, the machine can
automatically detect the abnormal and give an alert
●Adopt full digital segmented temperature control system, can maintain stable mold temperature under any operating conditions, with temperature control accuracy ±0.5°C,
●Equipped with RS485 communication interface, can communicate with the host to achieve centralized monitoring
Contact Us
Oil Mold Temperature Controller
Technical Parameter

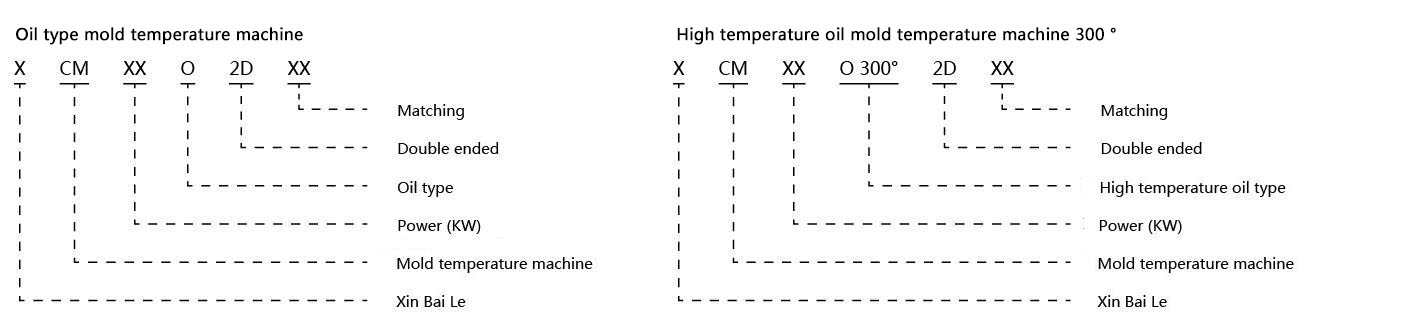

Oil type mold temperature machine
PARAMETERS
Machine type XCM-6-O XCM-6-O(2D) XCM-6-O XCM-9-O(2D) XCM-12-O XCM-12-O(2D) XCM-24-O XCM-24-O(2D)
Temperature rang(℃) +30-200℃ +30-200℃ +30-200℃ +30-200℃
Temp accuracy ±1 ±1 ±1 ±1
Source(V/FH/HZ) 380/3/50 380/3/50 380/3/5 380/3/50
Heat transfer media Heat transfer oil Heat transfer oil Heat transfer oil Heat transfer oil
Cooling mode Indirect order Indirect order Indirect order Indirect order
Heating power(kw) 6 6+6 9 9+9 12 12+12 12+12 12+12
Pump power(kw) 0.37 0.37+0.37 0.75 0.75+0.75 1.5 1.5+1.5 2.2 3
Pump working flow(L/min) 42 56 112 137 233 233
Pump working pressure(kgf/cm²) 2.2 2.8 2.5 2.7 3 3
Cooling water piping(inch) 1/2 1/2 1/2 1/2 1/2 1/2
Circulating water piping(inch) 3/8 3/8 3/8 3/8 3/8 3/8
Extemal size(mm) H x W x D 870×290×680 980×350×950 870×290×680 980×350×950 1030x350x720 1150×350×1100 1100×470×1080 1100×470×1080
High temperature oil mold temperature machine 300 °
PARAMETERS
Machine type Max temperature (C) heating power(kw) Pump Power (kw) Pump working flow (L/min) Pump working pressure(bar) Number of heating drums Capacity(L) Cooling mode Inlet/outlet
dimensions (inch) 		Extemal size H×W×D(mm) Net weight(kg)
Main tank Auxiliary fuel tank
XCM-12-OHP-300 300 12 0.55 25.5 4.8 1 6 7 indirect 3/4/3/4 710×390×1020 90
XCM-18-OHP-300 300 18 1 50 5.8 2 9 12 1/1 940×430×1050 184
