Cabinet Type Dryer

●High temperature sealed door maintains a consistent temperature and reduces heat loss
●The stainless steel material baking pan and lining prevents polluting raw materials during the drying process
●The inlet and exhaust are adjustable, which can easily adjust the air volume
●The 24h timing device, convenient for setting working time
●With over temperature protection and motor overload protective functions
●Equipped with caution light, can immediately reflect troubles

Cabinet Type Dryer

Technical Parameter

PARAMETERS

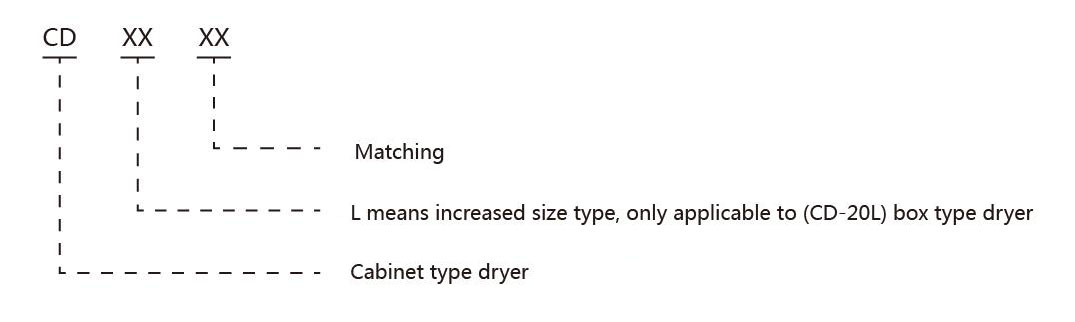

XDD Machine type	Electrothermal power(kw)	Fan power(kw)	Maximum drying temperature (℃)	Number of shelves	Loading capacity (kg)	Extemal size H×W×D(mm)	Internal size H1×W1×D1(mm)	Net weight (kg)
CD-5	4	0.37	200	5	50	1200×800×610	660×600×550	150
CD-9	4.5	0.37	200	9	90	1440×800×610	900×600×550	180
CD-20	9	1.5	200	20	200	1700×1210×860	1000×990×800	415
CD-20L	18	1.5	200	20	450	1865×1800×1060	1200×1600×1000	550
CD-5-HT	4	0.37	250	5	50	1380×860×731	660×600×550	200
CD-9-HT	4.5	0.55	250	9	90	1640×920×731	900×600×550	252
CD-20-HT	9	1.5	250	20	200	1887×1310×1032	1000×990×800	587
CD-20L-HT	18	1.5	250	20	450	2052×1900×1232	1200×1600×1000	778
