Water Mold Temperature Controller
●The heating temperature of XCM-Series die heaters can reach 120ºC, 150ºC, 180ºC
●With the one week timing on/off, support Chinese/English switch and C/F transfer
●Adopt segmented temperature control system, maintain stable die temperature under any operating conditions, the temperature control accuracy reaches ±0.5°C
●The entire pyromer circulation line adopts seamless stainless steel and copper tube making, which resists high temperature and with stronger anti-corrosiveness
●The built-in multiple safety displays and warning devices, such as reverse phase protection, pump overload and over temperature protection, low liquid-level alarm
●Equipped with RS485 communication interface, can communicate with the host to achieve centralized monitoring
Contact Us
Water Mold Temperature Controller
Technical Parameter

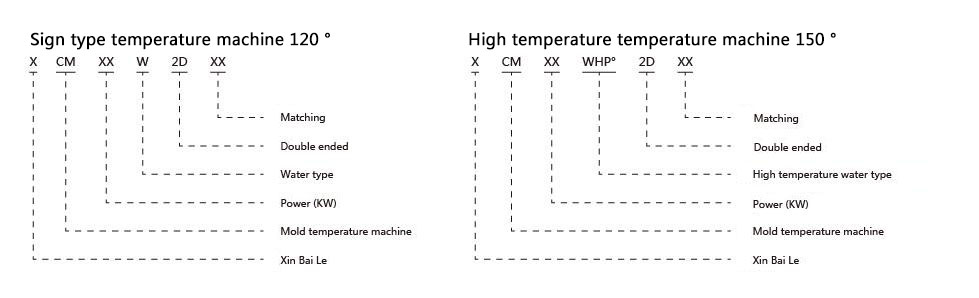

Sign type temperature machine 120 °
PARAMETERS
Machine type XCM-6-W XCM-6-W
(2D) 		XCM-9-W XCM-9-W
(2D) 		XCM-12-W XCM-12-W
(2D) 		XCM-18-W XCM-24-W
Temperature range(℃) +15-100 +15-100 +15-100 +15-100
Temp accuracy ±1 ±1 ±1 ±1
Source(V/FH/HZ) 380/3/50 380/3/50 380/3/50 380/3/50
Heat transfer media Water Water Water Water
Cooling mode Direct cooling Direct cooling Direct cooling Direct cooling
Heating power(kw) 6 6+6
9+9 12 12+12 9+9 12+12
Pump power(kw) 0.37 0.37+0.37 0.75 0.75+0.75 1.5 1.5+1.5 2 3
Pump working flow(L/min) 42 56 112 112 137 233
Pump working pressure(kgf/cm²) 2.2 2.8 2.5 2.5 2.7 3
Cooling water piping(inch) 1/2 1/2 1/2 1/2 1/2 1/2
Circulating water piping(inch) 3/8 3/8 3/8 3/8 3/8 1
Extemal size H(mm) 870 980 870 980 1030 1150 1100 1100
W(mm) 310 350 310 350 350 350 470 470
D(mm) 740 950 740 950 720 1100 1080 1080

High temperature temperature machine 150 °

PARAMETERS
Machine typ XCM-9-WHP XCM-9-WHP-2D XCM-12-WHP XCM-12-WHP-2D XCM-18-WHP XCM-24-WHP
Temperature range(℃) +15-150 +15-150 +15-150 +15-150 +15-150 +15-150
Temg accuracy ±1 ±1 ±1 ±1 ±1 ±1
Source(V/FH/HZ) 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Heat transfer media Water Water Water
Cooling mode Direct cooling Direct cooling Direct cooling
Heating power(kw) 9 9+9 12 12+12 9+9 12+12
Pump power(kw) 0.75 0.75+0.75 1.5 1.5+1.5 2.2 3
Pump working flow(L/min) 60 60 90 90 90 188
Pump working pressure(kgf/cm²) 4 4 3.5 3.5 3.5 3.6
Cooling water piping 1/2 1/2 1/2 1/2 1/2 1/2
Circulating water piping(inch) 3/8 3/8 3/8 3/8 3/8 3/8
Extemal size(mm)HxWxD 870×310×740 980×350×950 1030×350×720 1150×350×1100 1100×470×1080 1100×470×1080

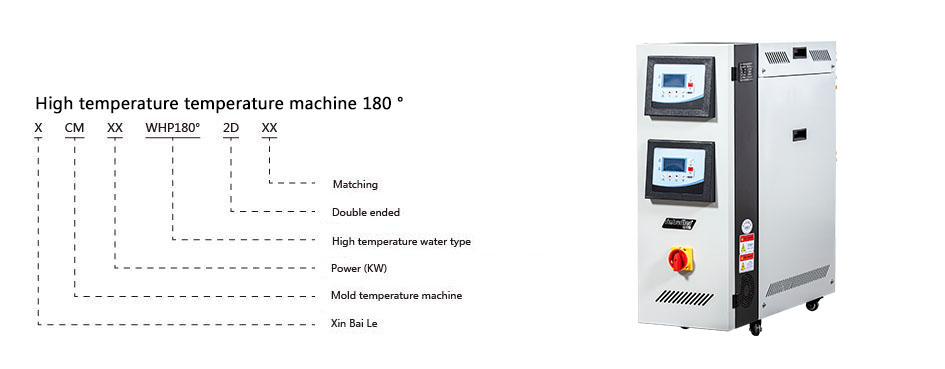

High temperature machine 180 degrees

PARAMETERS
model XCM-9-WHP
180℃ 		XCM-9-WHP-2D
180℃ 		XCM-12-WHP
180℃ 		XCM-12-WHP-2D
180℃ 		XCM-18-WHP
180℃ 		XCM-24-WHP
180℃
Temperature range(℃) +30-180 +30-180 +30-180 +30-180 +30-180 +30-18
Temp accuracy ±1 ±1 ±1 ±1 ±1 ±1
Source(V/FH/HZ) 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50
Heat transfer media Water Water Water
Cooling mode Indirect cooling Indirect cooling Indirect cooling
Heating power(kw) 9 9+9 12 12+12 9+9 12+12
Main pump horsepower(HP) 0.55 0.55+0.55 1.5 1.5+1.5 2 3
Make-up pump horsepower(HP) 0.7 0.7 0.7 0.7 0.7 0.7
Pump working flow(L/min) 60 60 90 90 90 188
Pump working pressure(kgf/cm²) 4 4 3.5 3.5 3.5 3.6
Cooling water piping(inch) 1/2 1/2 1/2 1/2 1/2 1/2
Circulating water piping(inch) 3/8 3/8 3/8 3/8 3/8 3/8
Extemal size(mm)  HxWxD 870×310×740 980×350×950 1030×350×720 1150×350×1100 1100×470×1080 1100×470×1080
