Gravimetric Blender
●When all materials are under the weighing metering mode, the micro metering can be strictly controlled in ±0.1% of the precision batch weight
●Automatic repetitive calibration, automatically calibrate after each weighing to ensure the optimum ingredient accuracy
●Mixing barrel can evenly mix raw materials and with big clearing door
●With Ethernet communication, realizes the network centralized monitoring with the molding machine
Gravimetric Blender

PARAMETERS

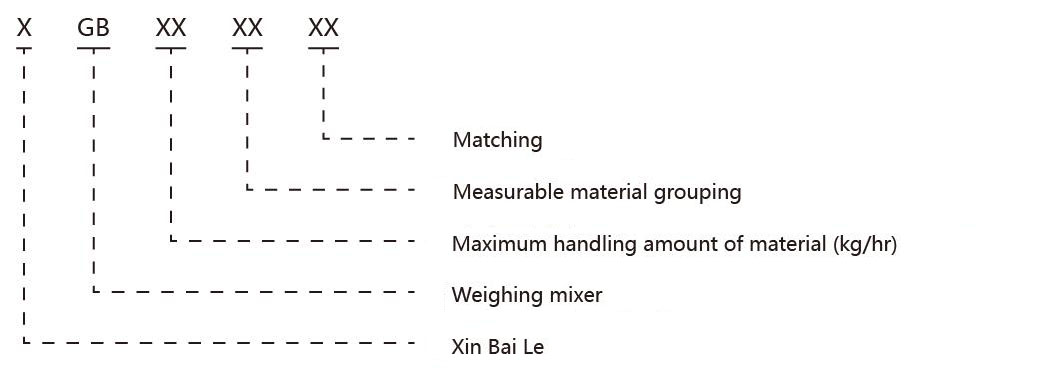

Machine type Number of components Principal measure width Submeter width Maximum batch
processing quantity(kg)
Mixer motor
power (kw)
Maximum seating
capacity(kg/hr)
XGB-40- 4 4 3 1 1 0.25 40
XGB-200- 4 4 3 1 3 0.25 200
XGB-600- 6 6 4 2 8 0.55 400
4 4 3 1 8 0.55 600
XGB-1200- 6 6 4 2 12 0.75 900
4 4 3 1 12 0.75 1200
XGB-2000- 8 8 5
18 0.75 1200
6 6 4 2 18 0.75 1600
4 4 3 1 18 0.75 2000
XGB-3000- 8 8 5 3 40 0.75 2000
6

4
6 4 2 40 0.75 2500
4 3 1 40 0.75 3000
