Centralized Crusher
●The blade is made of imported quality material, wear-resisting and high hardness, long service life, and can be grinded for repetitive use
●Adopt full soundproof feeding box. In the machine operation, the work noise can be greatly reduced. And the safety curtain is installed at the feeding port, so that materials will not spill out when they are crushed
●The engine belt wheel connects the transmission shaft by V shape belt, with the characteristics of balanced operation, precise match, convenient disassembly and easy maintenance
●Standard equipped with tool adjust frame, making the moving blade adjustable in the external machine
clamp, no need for the process of hard adjustment inside machine
Centralized Crusher

PARAMETERS

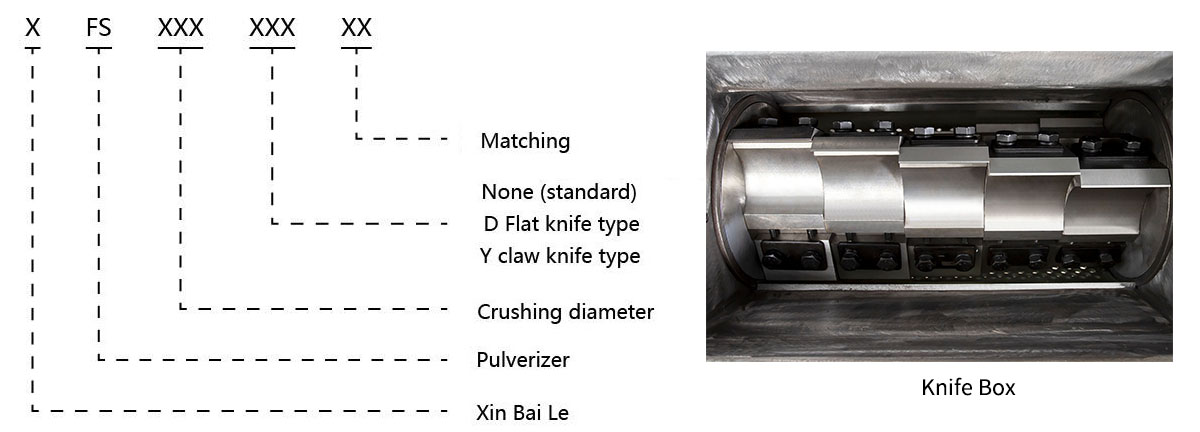

Machine type XFS-230 XFS-300 XFS-400 XFS-500 XFS-600 XFS-800
Diameter of crushing chamber(mm) 230×200 300×240 400×240 500×325 600x325 800×460
Crushing capacity(kg/h) 100-150 150-200 200-250 300-350 350-450 450-600
Number of stationary tools 6 9 12 15 18 24
Number of rotating tools 2 2 2 2 4 4
Driving power(kw) 4 5.5 7.5 11 15 22/30
Weight(kg) 290 435 500 900 1100 2000
Size(mm) H×W×D 970×610×1200 1030×740×1390 1030×840x1390 1320×1010×1830 1320×1110×1830 1730×1490x2300
